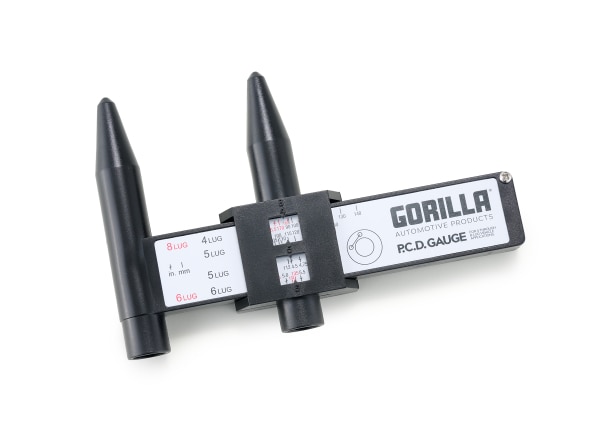

Gorilla Wheel Bolt Pattern Gauge

Gorilla’s Bolt Pattern Gauge allows users to quickly and accurately measure both vehicle and wheel bolt patterns. Ideal for professional mechanics and DIY enthusiasts, this handheld tool can precisely measure most 4, 5, 6, and 8-lug wheel patterns in both inches and metric sizes.

Simply insert one point into a hole, slide to the next hole, and read the gauge’s measurement to determine the wheel’s PCD (Pitch Circle Diameter). Gorilla’s Bolt Pattern Gauge can also be flipped over to measure the studs on your vehicle or trailer axle, so you can easily find the right wheel fitment to match your vehicle.

Features & Benefits:

• Made with high-quality, lightweight plastic material
• Can be used to measure a wheel’s bolt holes or vehicle studs
• Precision-made, professional quality
• Covered by Gorilla’s limited warranty
• Designed to measure common inch and metric bolt patterns:
4-Lug: 4x98, 4x100, 4x110, 4x120, 4x130, 4x140, 4x4.5”
5-Lug: 5x100, 5x108, 5x112, 5x115, 5x120, 5x130, 5x135, 5x150, 5x4.5”, 5x4.75”, 5x5”, 5x5.5”
6-Lug: 6x135, 6x4.5”, 6x5.0”, 6x5.5”
8-Lug: 8x170, 8x6.5”
